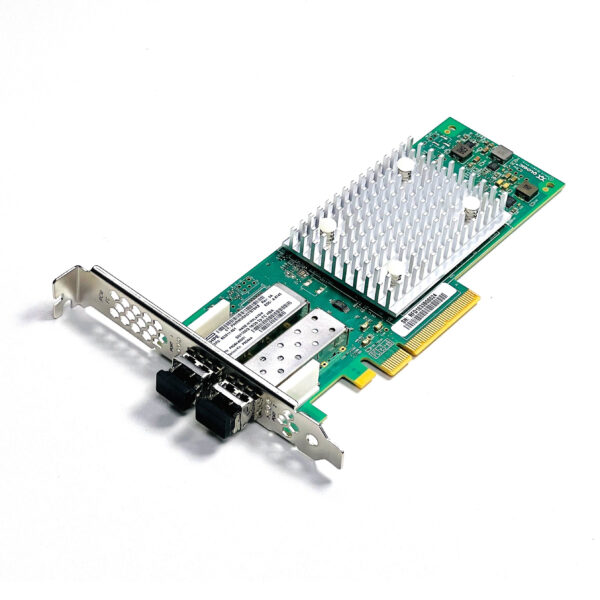

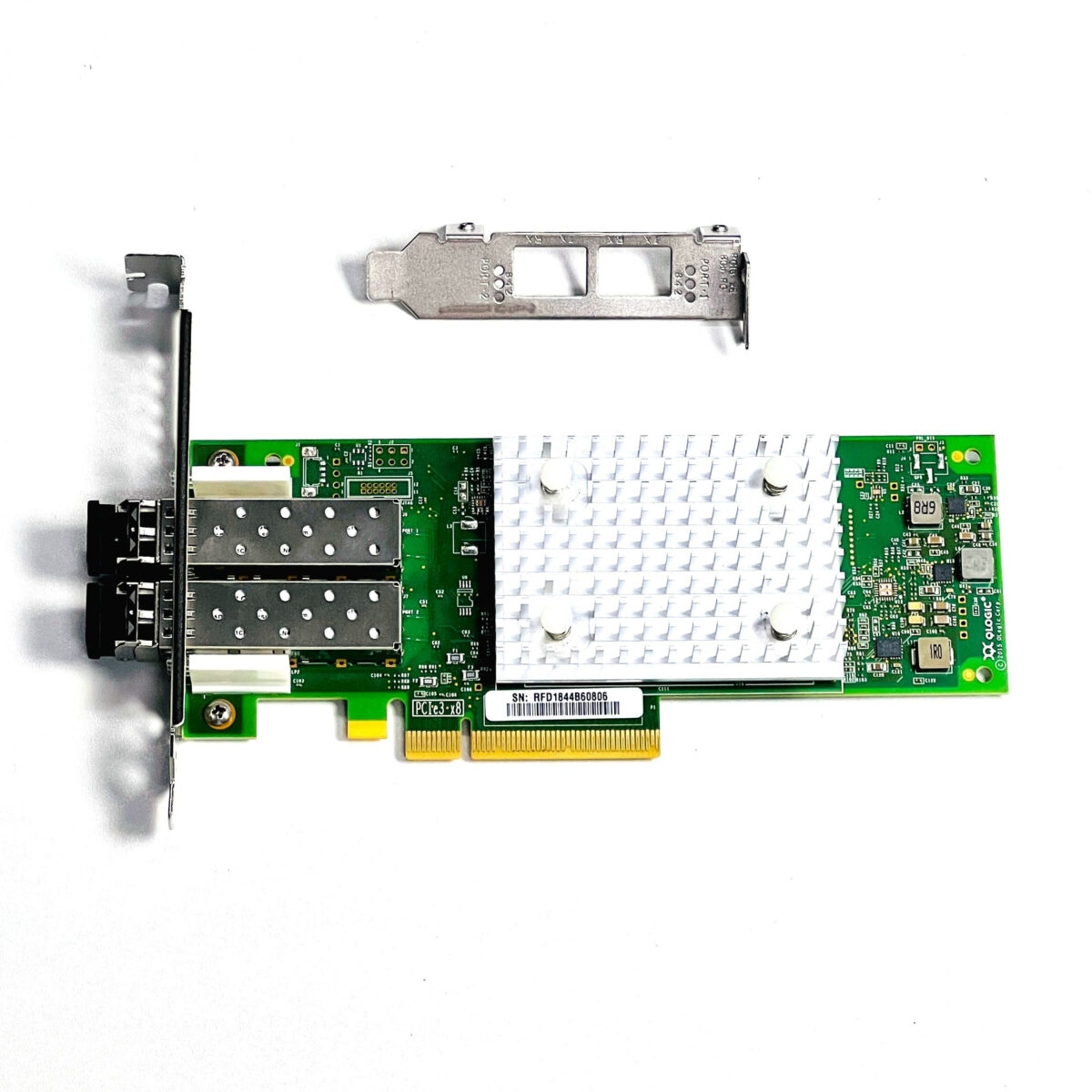

Lenovo 01KR586 QLogic QLE2692 Dual-Port 16Gb FC HBA with SFP+ Modules
Specification Table
| Feature | Specification |
|---|---|
| Model | Lenovo 01KR586 (QLogic QLE2692-LNV) |
| Ports | 2 x SFP+ (Small Form-factor Pluggable) |
| Data Transfer Rate | 16 Gbps (auto-negotiates with 8 Gbps and 4 Gbps) |
| Interface | PCIe 3.0 x8 |
| Form Factor | Low-profile (half-height) PCIe card |
| Dimensions | 6.6 inches × 2.731 inches (167.64 mm × 69.4 mm) |
| Power Consumption | 9.3 W |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | Operating: 10% to 90%; Storage: 5% to 95% |
| Compliance | UL, CSA, TUV, CB, FCC, VCCI |
| Maximum Cable Distances | 16 Gbps: OM2 – 35 m, OM3 – 100 m, OM4 – 125 m (multimode fiber) |
📄 Description
The Lenovo 01KR586, based on the QLogic QLE2692-LNV, is a dual-port 16Gb Fibre Channel Host Bus Adapter (HBA) designed for high-performance storage networking. It connects servers to Fibre Channel SANs, offering data transfer rates up to 16 Gbps per port with auto-negotiation for 8 Gbps and 4 Gbps. The adapter utilizes a PCIe 3.0 x8 interface, ensuring high throughput and low latency.
This HBA is optimized for virtualized environments, supporting up to 2,048 concurrent logins and 2,048 active exchanges per port. It features full hardware offload for Fibre Channel protocols, reducing CPU utilization and enhancing overall system performance. The low-profile form factor allows compatibility with various server chassis, making it versatile for different setups.
With support for advanced features like NPIV (N_Port ID Virtualization), the QLE2692-LNV is ideal for applications requiring high I/O performance, such as media streaming, backup/recovery, data warehousing, OLTP, Microsoft Exchange Server, and server virtualization. Its robust design and comprehensive management tools ensure reliable and efficient operation in demanding enterprise environments.
Key Features
- Brand & Model: Lenovo 01KR586, QLogic QLE2692
- Interface: PCI Express (PCIe) 3.0 x8
- Fibre Channel Speed: 16Gb/s per port
- Ports: Dual-Port with SFP+ modules
- Compatibility: Supports Lenovo servers and most SAN storage systems
- Performance: Low latency, high throughput for mission-critical applications
- Form Factor: Low-profile for flexible server installation
- Advanced Features: Supports NPIV, FCoE, and hardware-based acceleration for optimized storage access
Where it Can Be Used?
- Ideal for enterprise data centers and SAN storage networks.
- Perfect for virtualized server environments that require high-speed data transfer.
- Suitable for Lenovo ThinkSystem servers or any compatible server requiring 16Gb FC connectivity.
- Supports high-performance computing applications, backup solutions, and storage replication.
Installation Step
- Power down the server and unplug all cables.
- Open the server chassis and locate an available PCIe x8 slot.
- Insert the Lenovo 01KR586 HBA firmly into the slot.
- Secure the card with the chassis screw.
- Connect the SFP+ fiber cables to your SAN switch or storage device.
- Close the chassis and power on the server.
- Install drivers and management software as per Lenovo’s guidelines.
- Verify connectivity and ensure the card is recognized by the system.
Buy Lenovo 01KR586 Dual-Port 16Gb FC HBA at the Best Price from Server SSD BD.
In Bangladesh, you can get Lenovo 01KR586 Dual-Port 16Gb FC HBA From Server SSD BD. We have a large collection of latest HBA Card to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The Lenovo 01KR586 Dual-Port 16Gb FC HBA comes with 1 Year warranty.
