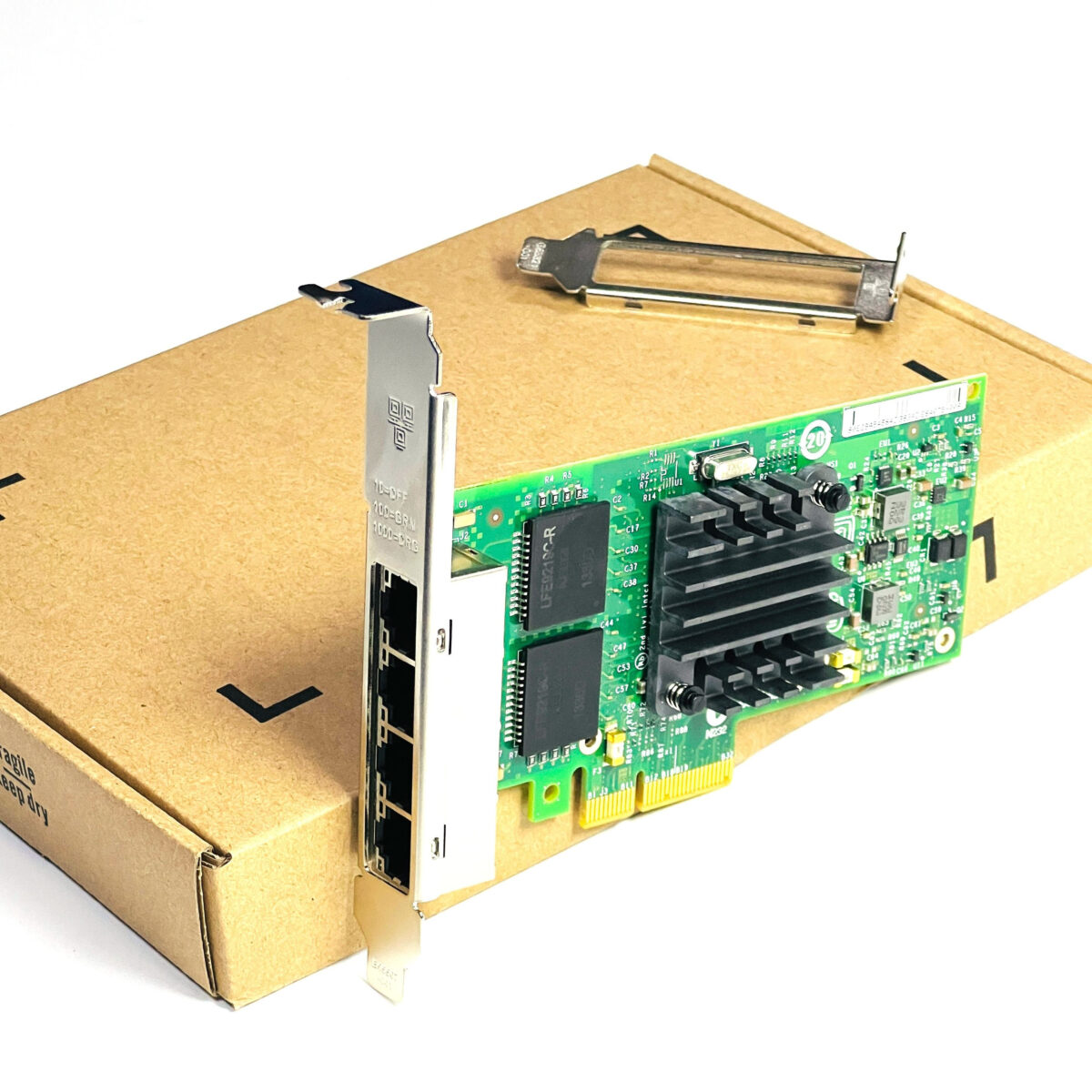

Intel I340-T4 Ethernet Server Adapter
The Intel I340-T4 Ethernet Server Adapter is a high-performance network card designed for servers, offering 4 Gigabit RJ-45 ports with robust VLAN and Jumbo Frame support. It ensures reliable and efficient data transfer with advanced offloading features and Wake-on-LAN capability. Ideal for enterprise environments in Bangladesh, it supports Windows, Linux, and VMware platforms while maintaining low power consumption and high reliability.
Specification Table
| Feature | Details |
|---|---|
| Model | Intel I340-T4 |
| Interface | PCI Express 2.0 x4 |
| Ports | 4 × Gigabit RJ-45 Ports |
| Supported Speeds | 10/100/1000 Mbps |
| MAC Addresses | 256 per adapter |
| Wake on LAN | Yes |
| VLAN Support | 802.1Q VLAN tagging |
| Offloading Features | TCP/UDP/IP checksum offload, Large Send Offload (LSO), VLAN offload |
| Jumbo Frame Support | Up to 9.5 KB |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x |
| Operating Systems Supported | Windows Server, Linux, VMware ESXi |
| Power Consumption | Typical: 8.6 W per port |
| Dimensions | Low-profile and standard-profile options available |
| Temperature Range | 0°C to 55°C (operating) |
| Reliability | Enterprise-class with advanced error detection and recovery |
Description
The Intel I340-T4 Ethernet Server Adapter is a high-performance, quad-port Gigabit network interface card designed for enterprise-class servers. Built on Intel’s proven architecture, it delivers reliable and efficient network connectivity for demanding data center and virtualization workloads. With four RJ-45 Gigabit ports, the I340-T4 allows for multiple network configurations, including failover, load balancing, and network segmentation, enhancing both performance and redundancy.
Its PCI Express 2.0 x4 interface ensures fast data transfer rates between the adapter and the host system, while advanced offloading features such as TCP/UDP checksum offload, Large Send Offload (LSO), and VLAN tagging reduce CPU utilization, freeing up resources for critical applications. The adapter supports jumbo frames up to 9.5 KB, optimizing large data transfers and improving throughput in high-performance environments.
The Intel I340-T4 is compatible with major operating systems including Windows Server, Linux, and VMware ESXi, making it a versatile solution for both physical and virtualized servers. Low-profile and standard-profile designs offer installation flexibility across a wide range of server chassis. With enterprise-class reliability, advanced error detection, and support for Wake-on-LAN, this adapter ensures continuous network availability, making it ideal for mission-critical deployments in data centers and enterprise IT infrastructures.
Key Features
- Quad-port Gigabit Ethernet adapter for servers
- PCI Express 2.1 x4 interface for high-speed connectivity
- Supports Intel’s Advanced Network Services like VLAN, teaming, and QoS
- Energy-efficient design with low power consumption
- Compatible with major operating systems including Windows Server and Linux
- Hardware-based TCP/UDP/IP checksum offloading to reduce CPU load
Where it Can Be Used?
- Enterprise and data center servers requiring reliable network performance
- Virtualization environments needing multiple network interfaces
- High-traffic applications like database servers, web servers, and file servers
- Network redundancy and failover configurations
- Workloads requiring low-latency and high-throughput connections
Installation Step
- Power off the server and unplug it from the power source.
- Open the server chassis to access the PCIe slots.
- Insert the Intel I340-T4 adapter into an available PCIe x4 slot.
- Secure the card with the retention screw and close the chassis.
- Connect Ethernet cables to the adapter’s ports.
- Power on the server and install the latest drivers from Intel or the server vendor.
- Configure network settings in the operating system or server management software.
Buy Intel I340-T4 Ethernet Server Adapter at the Best Price from Server SSD BD.
In Bangladesh, you can get Intel I340-T4 Ethernet Server Adapter From Server SSD BD. We have a large collection of latest HPE Network Card to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The Intel I340-T4 Ethernet Server Network Card comes with 1 Year warranty.
Get in Touch with Server SSD Bangladesh
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Intel I340-T4 Ethernet Server Adapter in Bangladesh?
The estimated price of Intel I340-T4 Ethernet Server Adapter in Bangladesh is 32,500৳. You can buy the Intel I340-T4 Ethernet Server Network Card at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
