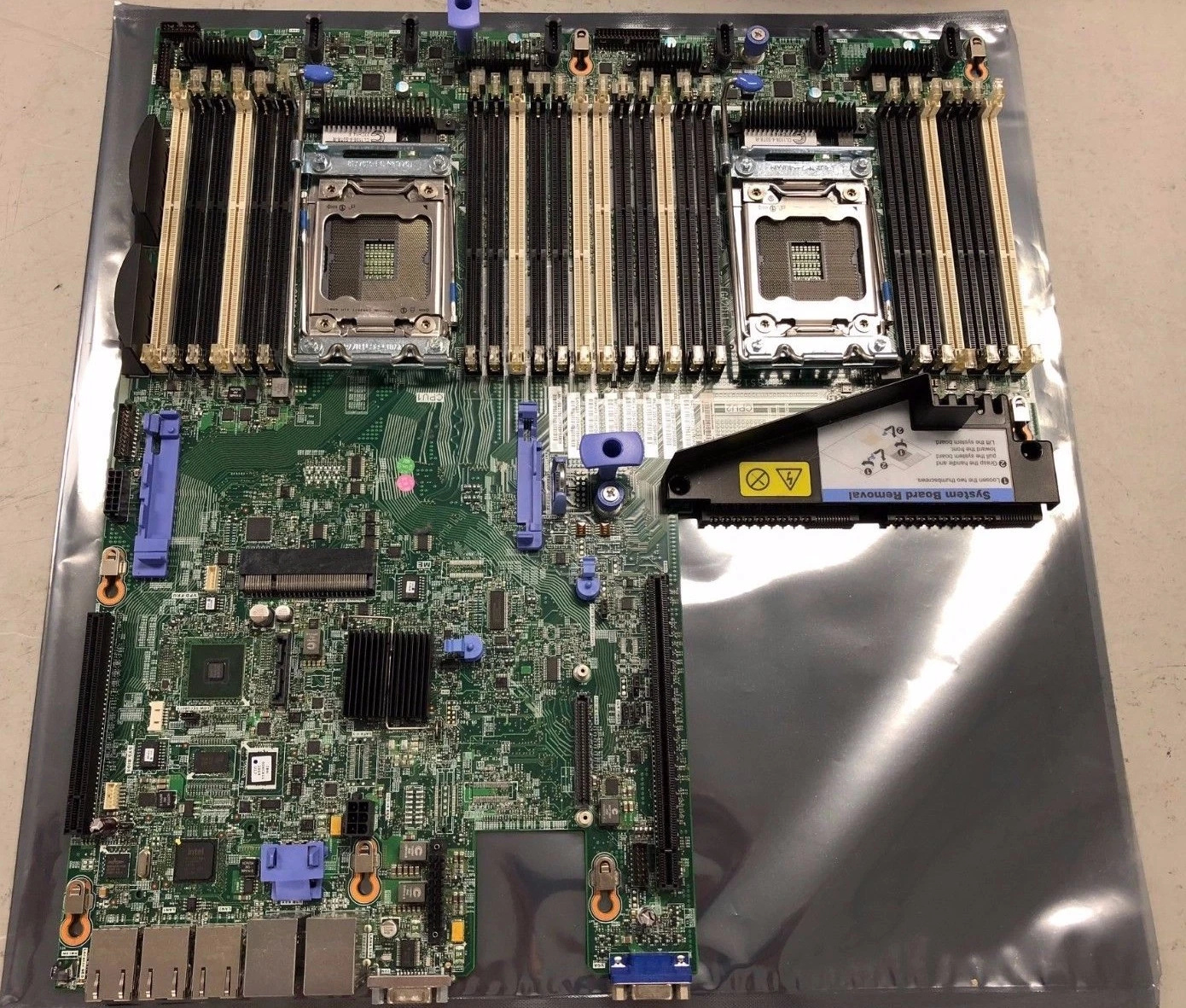

IBM 00AM409 System Board for X3550 M4
Specification Table
| Specification | Details |
|---|---|
| Model Number | 00AM409 |
| Compatible Server | IBM System x3550 M4 |
| Processor Support | Dual Intel Xeon E5-2600 series (up to 8 cores per processor) |
| Chipset | Intel C600 Series |
| Memory Type | DDR3 ECC RDIMM |
| Memory Slots | 24 DIMM slots |
| Maximum Memory | Up to 768 GB |
| Expansion Slots | 7 PCIe 3.0 (low-profile/full-height) |
| Integrated Network | 4 × Gigabit Ethernet ports |
| Storage Controller Support | SAS/SATA RAID controller support |
| Management | IMM2 (Integrated Management Module) |
| Power Supply Compatibility | Redundant hot-swap PSUs supported |
| Form Factor | Standard server motherboard form factor |
| Reliability Features | Hot-swap support, redundant fans, ECC memory support |
| Firmware/BIOS | UEFI with system firmware updates |
| I/O Ports | USB 2.0, VGA, Dedicated management port |
Description:
The IBM 00AM409 System Board is a high-performance motherboard designed specifically for the IBM System x3550 M4 server. Built to support dual Intel Xeon E5-2600 series processors, it delivers robust processing capabilities for enterprise workloads, virtualization, and data-intensive applications. With 24 DIMM slots supporting DDR3 ECC memory, this system board enables a maximum memory capacity of up to 768 GB, ensuring reliability and fast access to large datasets.
Equipped with 7 PCIe 3.0 expansion slots, it provides flexibility for adding network cards, storage controllers, or other server expansion components. The integrated four-port Gigabit Ethernet network allows efficient connectivity, while support for SAS and SATA storage controllers ensures fast, scalable storage performance. Reliability is a core feature of the 00AM409, with ECC memory, redundant fan support, and hot-swap readiness, ensuring minimal downtime in critical environments.
The motherboard is managed via IBM’s IMM2 module, offering advanced monitoring, firmware management, and remote administration capabilities. It also supports UEFI firmware for improved system boot times and configuration flexibility. Overall, the IBM 00AM409 system board combines high processing power, memory capacity, and enterprise-grade reliability, making it a suitable choice for businesses running virtualized servers, databases, and demanding IT workloads.
Key Features
- Model: IBM 00AM409
- Compatibility: IBM System x3550 M4 Rack Server
- Processor Support: Dual Intel Xeon E5-2600 v1/v2 series
- Memory Support: Up to 768 GB DDR3 ECC RDIMM/LRDIMM across 24 DIMM slots
- Integrated Components: Onboard SAS controller, PCIe slots for expansion cards, integrated Gigabit Ethernet ports
- Power & Efficiency: Supports advanced power management features and redundant power supplies
- Form Factor: Standard system board for 2U rack server
Where it Can Be Used
- Data Centers: Ideal for enterprise-grade servers needing high performance and reliability
- Virtualization Environments: Supports multiple virtual machines with high memory and processing capacity
- Database & Application Servers: Suitable for intensive workloads and mission-critical applications
- Cloud Hosting: Can be deployed in private cloud servers due to scalability and redundancy
- High-Performance Computing (HPC): Supports compute-intensive tasks with multiple cores and memory modules
Installation Step
- Power off the server and disconnect all cables.
- Open the server chassis following manufacturer guidelines.
- Remove the existing system board if upgrading.
- Carefully align the 00AM409 system board into the chassis mounting points.
- Connect all power, data, and peripheral cables to the appropriate headers.
- Secure the system board with screws provided.
- Close the chassis and reconnect all external connections.
- Power on the server and verify system board detection via BIOS/UEFI.
Buy IBM 00AM409 System Board for X3550 M4 at the Best Price from Server SSD BD.
In Bangladesh, you can get IBM 00AM409 System Board for X3550 M4 From Server SSD BD. We have a large collection of latest IBM Server Board to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The IBM 00AM409 System Board for X3550 M4 comes with 3 Months warranty.
