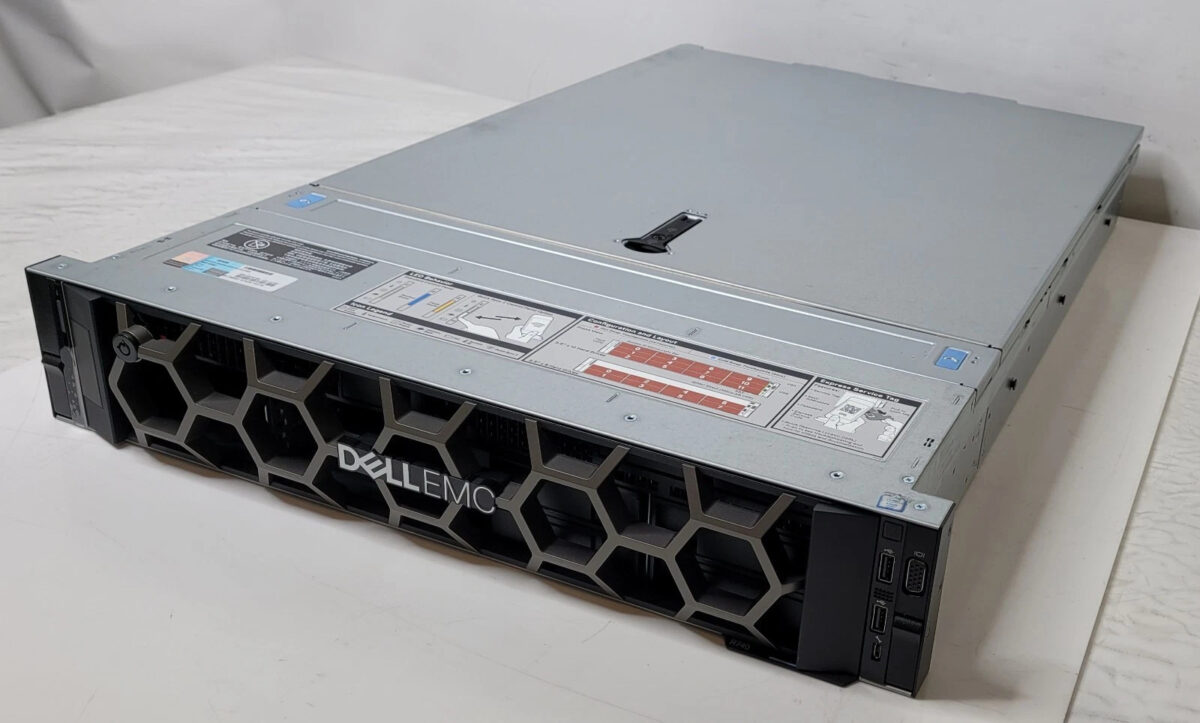

Dell PowerEdge R740 Rack Server
Specification Table
| Component | Specification |
|---|---|
| Form Factor | 2U Rack Server |
| Processor | Up to 2 × Intel Xeon Scalable processors (Platinum, Gold, Silver, Bronze) |
| CPU Cores | Up to 28 cores per processor |
| Memory | Up to 3TB DDR4, 24 DIMM slots, RDIMM/LRDIMM support, 2666MT/s |
| Storage Options | Up to 16 × 2.5″ or 8 × 3.5″ SAS/SATA/NVMe drives |
| RAID Controller | PERC H740P, H745, or HBA options |
| Network Interface | 4 × 1GbE LOM standard, optional 10/25GbE NICs |
| Expansion Slots | Up to 8 PCIe 3.0 slots |
| Power Supply | Dual hot-plug redundant PSUs (up to 1600W) |
| Management | iDRAC9 with Lifecycle Controller |
| Operating System | Supports Windows Server, Linux, VMware, Citrix |
| Security Features | TPM 1.2/2.0, system lockdown, secure boot, BIOS/UEFI secure updates |
| Dimensions (H×W×D) | 87.3 × 482 × 731 mm |
| Weight | Starting at 33 kg |
| Cooling | Redundant hot-swappable fans |
Dell PowerEdge R740 Description
The Dell PowerEdge R740 is a high-performance 2U rack server designed for versatile workloads in enterprise data centers. Its dual Intel Xeon Scalable processor support allows for heavy computational tasks, virtualization, and database applications, while delivering excellent performance and energy efficiency. With up to 3TB of DDR4 memory across 24 DIMM slots, it is optimized for memory-intensive applications and virtualization environments.
The R740 supports flexible storage configurations, including SAS, SATA, and NVMe drives, offering high I/O throughput for demanding workloads such as software-defined storage and high-performance databases. Its advanced RAID options, powered by PERC controllers, ensure data protection and reliable performance. The server includes multiple PCIe slots, enabling expansion for accelerators, GPUs, or additional network interfaces.
Dell’s iDRAC9 with Lifecycle Controller simplifies management and monitoring, reducing operational overhead and downtime. Security features such as TPM, secure boot, and system lockdown protect critical business data. Redundant power supplies and hot-swappable fans ensure continuous uptime, while the 2U form factor provides a dense, scalable solution for growing data center needs. The R740 is ideal for virtualization, cloud deployments, and high-performance computing, combining reliability, scalability, and efficiency for modern IT environments.
Key Features
- Form Factor: 2U Rack server, designed for high-density data center environments.
- Processor: Supports up to 2 × Intel Xeon Scalable processors, offering up to 28 cores per CPU for heavy workloads.
- Memory: Up to 3TB DDR4 RAM with 24 DIMM slots, supporting RDIMM and LRDIMM modules.
- Storage: Flexible storage options including SAS, SATA, and NVMe drives, supporting up to 16 x 2.5” or 8 x 3.5” drives.
- RAID Support: PERC H730P or H740P RAID controllers for data protection.
- Networking: Multiple network interface card (NIC) options for high-speed connectivity.
- Expansion: Up to 8 PCIe Gen3 slots for GPU, NIC, or storage expansion.
- Management: Integrated Dell Remote Access Controller (iDRAC9) for remote server management.
Where it Can Be Used?
- Data Centers: Ideal for virtualization, large-scale computing, and enterprise applications.
- Cloud Environments: Supports private and hybrid cloud deployments.
- Database Servers: High-performance server for transactional and analytical workloads.
- AI/ML Workloads: Can accommodate GPU accelerators for AI and machine learning applications.
- High-performance Computing: Suitable for workloads requiring heavy compute power, such as scientific simulations.
Installation Step
- Rack Mounting: Secure the R740 into a standard 19-inch server rack using rails provided.
- Connect Power: Attach redundant power supplies to the server and plug into UPS or power distribution units.
- Networking: Connect network cables to the appropriate NIC ports.
- Initial Setup: Power on the server and configure BIOS settings.
- Operating System Installation: Use iDRAC or physical console to install the desired OS.
- RAID Configuration: Configure RAID through PERC controller if using multiple drives.
- Final Checks: Verify server health, firmware updates, and network connectivity.
