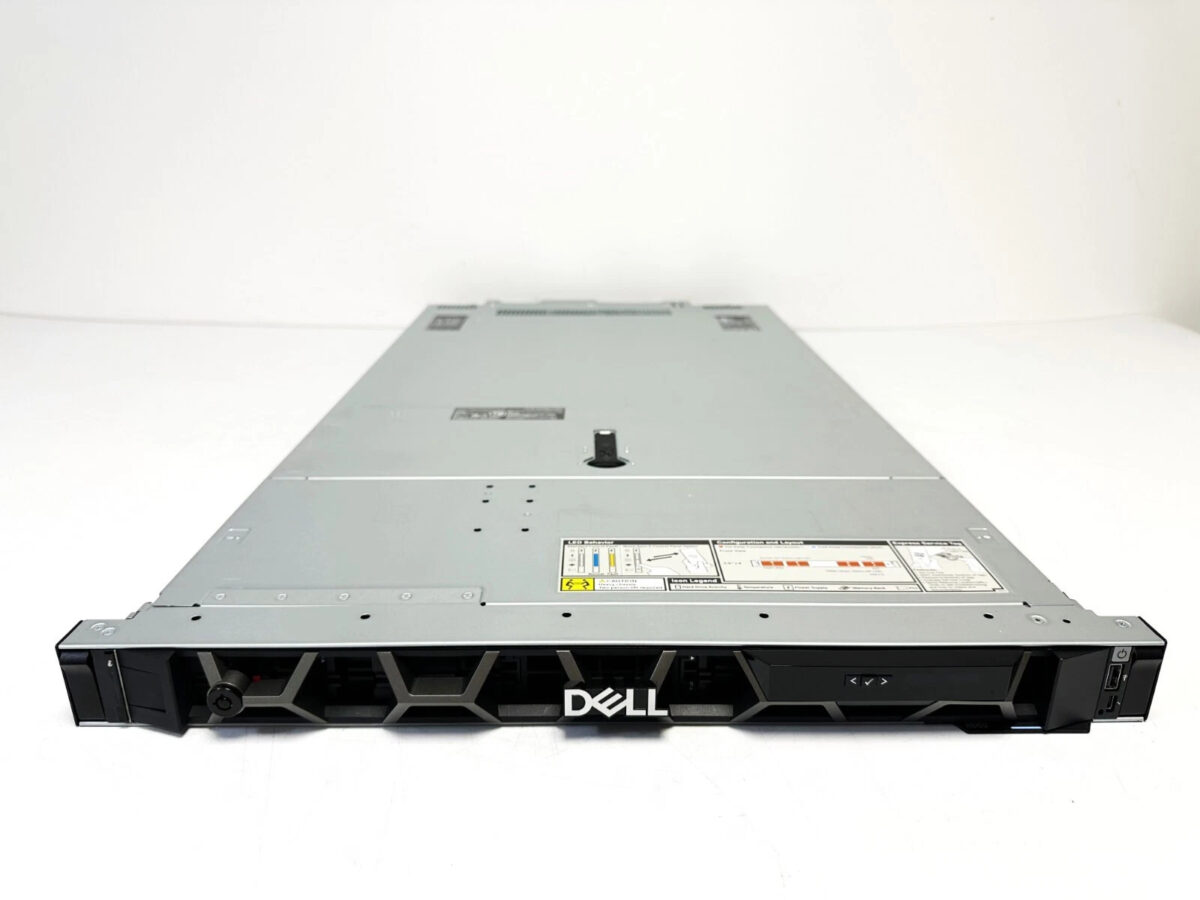

Dell PowerEdge R660 1U Rack Server
The Dell PowerEdge R660 1U Rack Server is a high-performance, scalable server designed for modern data centers in Bangladesh. It supports up to 2 Intel Xeon 4th Gen processors, 8TB memory, and flexible storage options including SAS, SATA, and NVMe drives. With robust RAID support, redundant power supplies, and advanced management features, it ensures reliable, secure, and efficient operations for enterprise workloads.
Specification Table
| Component | Specification |
|---|---|
| Form Factor | 1U Rack Server |
| Processor | Up to 2 × Intel Xeon Scalable 4th Gen Processors (Ice Lake) |
| Cores/Threads | Up to 40 cores per CPU, 80 threads per CPU |
| Memory | Up to 32 × DDR4 DIMM slots, 8TB max, 3200MT/s ECC Registered/Load Reduced |
| Storage | Up to 12 × 2.5” SAS/SATA/NVMe drives or 6 × 3.5” SAS/SATA drives |
| RAID Controller | PERC H755/H750, supports RAID 0,1,5,10,50,60 |
| Networking | 2 × 1GbE LOM standard, optional 10/25/40GbE adapters |
| Expansion Slots | Up to 3 PCIe Gen4 slots |
| Power Supply | Dual hot-plug redundant PSUs (up to 1600W each) |
| Management | iDRAC9 with Lifecycle Controller |
| Cooling | Front-to-back hot-plug fans |
| Operating System | Supports Windows Server, Linux, VMware, and other major OS |
| Security | TPM 2.0, System Lockdown, Secure Boot |
| Dimensions | 42.8 mm x 434 mm x 711 mm (H x W x D) |
Dell PowerEdge R660 Rack Server Description
The Dell PowerEdge R660 1U Rack Server is a high-performance, compact server designed for modern data centers requiring maximum computing power in a small footprint. Optimized for workloads ranging from virtualization and databases to high-performance computing and cloud infrastructure, the R660 delivers exceptional reliability, scalability, and efficiency. Its support for dual Intel Xeon 4th Generation Scalable processors allows it to handle compute-intensive tasks with ease, while up to 32 DDR4 DIMM slots provide massive memory capacity for demanding applications.
Storage flexibility is another key strength, with support for a mix of SAS, SATA, and NVMe drives, offering both high capacity and high-speed options. Dell’s integrated PERC RAID controllers ensure data protection, redundancy, and fast performance for critical workloads. Networking options are versatile, supporting both standard 1GbE connections and higher-speed 10/25/40GbE adapters for demanding network traffic.
Management and security are built-in with iDRAC9 and Lifecycle Controller, allowing administrators to monitor, update, and manage servers efficiently, while TPM 2.0, secure boot, and system lockdown enhance data protection. With its 1U form factor, hot-swappable power supplies, and efficient cooling system, the PowerEdge R660 balances density, performance, and reliability, making it an ideal choice for enterprises looking to consolidate servers while maintaining robust computing capabilities.
Installation Steps
- Rack Mounting: Secure the R660 into a standard 19-inch server rack using included rails.
- Power Connection: Connect redundant power supplies to the appropriate circuits.
- Network Setup: Attach Ethernet or fiber connections for management and data traffic.
- Storage Configuration: Install required drives (SAS, SATA, or NVMe) and configure RAID if necessary.
- Initial Setup: Power on and access iDRAC for firmware updates, BIOS configuration, and OS installation.
- Monitoring: Set up alerts and monitoring for optimal performance and maintenance.
User Experience
Users report the Dell PowerEdge R660 as highly reliable, with fast boot times and excellent remote management via iDRAC. The server’s compact 1U design allows for high-density deployment without compromising cooling efficiency. IT administrators find setup straightforward, and the flexibility in storage and networking makes it suitable for a wide range of workloads. Energy efficiency and performance optimization contribute to lower operational costs while maintaining robust computing power.
Buy Dell PowerEdge R660 1U Rack Server at the Best Price from Server SSD BD.
In Bangladesh, you can get Dell PowerEdge R660 1U Rack Server From Server SSD BD. We have a large collection of latest Dell Server to purchase for your Data Center. Order Online Or Visit our Office to get yours at lowest price. The Dell PowerEdge R660 1U Server comes with 3 Years warranty.
Get in Touch with Server SSD Bangladesh
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Dell PowerEdge R660 1U Rack Server in Bangladesh?
The estimated price of Dell PowerEdge R660 1U Rack Server in Bangladesh is 0৳. You can buy the Dell PowerEdge R660 1U Server at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
