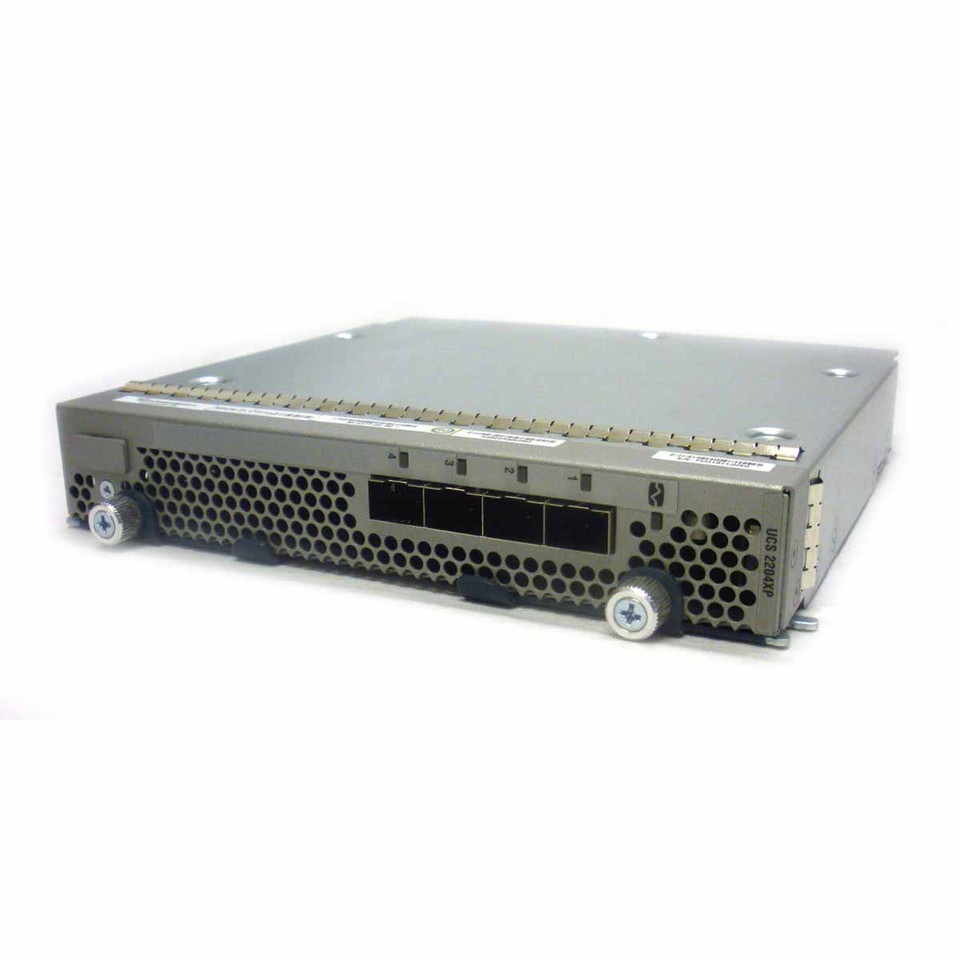

Cisco UCS-IOM-2204XP 4-Port 10GB Fabric Expansion Module
The Cisco UCS-IOM-2204XP is a high-performance 4-port 10GB Fabric Expansion Module designed for Cisco UCS 5108 Blade Server Chassis. It provides fast and reliable connectivity with 32 internal 10Gbps server links and external uplinks, supporting unified LAN and SAN traffic. This hot-swappable module ensures redundancy and seamless integration with Cisco UCS B-Series Blade Servers, making it ideal for enterprise data centers.
Specification Table
| Feature | Details |
|---|---|
| Model | Cisco UCS-IOM-2204XP |
| Product Type | Fabric Extender (FEX) Module |
| Ports | 4 x External 10Gbps Ethernet Ports |
| Internal Connectivity | 32 x 10Gbps Internal Server Links |
| Port Speed | 10 Gigabit Ethernet |
| Module Type | I/O Module for UCS 5108 Blade Server Chassis |
| Supported Chassis | Cisco UCS 5108 Blade Server Chassis |
| Connectivity Type | Fabric Interconnect Connection (uplinks to 6100, 6200, 6300 series) |
| Architecture | Unified Fabric (LAN & SAN traffic over Ethernet) |
| Redundancy | Supports redundant fabric paths with dual IOM setup |
| Compatibility | Cisco UCS B-Series Blade Servers |
| Hot-Swappable | Yes |
| Form Factor | Plug-in Module |
📖 Description:
The Cisco UCS-IOM-2204XP 4-Port 10Gb Fabric Expansion Module is a high-performance I/O module designed for use with the Cisco UCS 5108 Blade Server Chassis. Engineered to provide scalable, low-latency connectivity, this module integrates seamlessly with Cisco UCS architecture to deliver enterprise-class networking capabilities. Equipped with 4 external 10 Gigabit Ethernet uplink ports and 32 internal 10Gbps server ports, it ensures reliable connectivity between blade servers and fabric interconnects.
This expansion module supports unified fabric architecture, enabling the convergence of LAN and SAN traffic over the same Ethernet link, which reduces infrastructure complexity and operational costs. By leveraging Cisco’s Fabric Extender (FEX) technology, the UCS-IOM-2204XP centralizes management, offering a simplified operational model with consistent policies across servers.
The module is hot-swappable, allowing for easy replacement or upgrades without impacting system uptime. Its support for redundant fabrics ensures high availability and fault tolerance, making it ideal for mission-critical workloads in enterprise environments.
Designed for compatibility with Cisco UCS B-Series Blade Servers and managed through the Cisco UCS Manager, the UCS-IOM-2204XP provides flexible, scalable, and efficient connectivity that aligns with modern data center requirements. It is a robust choice for businesses looking to enhance performance and reliability in their UCS infrastructure.
🔑 Key Features
- High-Performance Connectivity: Provides 4 x 10GbE unified fabric ports for seamless data transmission.
- Fabric Expansion Module: Designed to connect UCS blade servers to fabric interconnects for efficient scalability.
- Low Latency: Optimized for high-speed and low-latency networking in data centers.
- Energy Efficient: Consumes less power compared to traditional switch modules.
- Scalability: Supports future growth with modular design and simplified management.
- Reliability: Redundant pathways ensure continuous availability and failover protection.
- Integration: Fully compatible with Cisco UCS 5108 Blade Server Chassis and UCS Fabric Interconnects.
📍 Where It Can Be Used?
- Cisco UCS 5108 Blade Server Chassis
- Enterprise Data Centers needing high-performance blade server networking.
- Cloud Computing Environments where scalable networking is essential.
- Virtualization & High-Density Workloads requiring low-latency and high-bandwidth interconnects.
- Mission-Critical Applications in finance, healthcare, telecom, and government sectors.
⚙️ Installation Steps
- Power Off & Prepare: Ensure the UCS chassis is powered down or in maintenance mode.
- Remove Blank/Faulty Module: Carefully remove the existing module or blank cover from the expansion slot.
- Insert the IOM Module: Slide the Cisco UCS-IOM-2204XP into the I/O module slot until it clicks securely.
- Secure the Module: Tighten the retention screws for stability.
- Connect Cables: Attach the 10GbE cables to the fabric interconnect.
- System Recognition: Power on the chassis, and the UCS Manager will automatically detect and configure the module.
Buy Cisco UCS-IOM-2204XP 4-Port 10GB Fabric Expansion Module at the Best Price from Server SSD BD.
In Bangladesh, you can get Cisco UCS-IOM-2204XP 4-Port 10GB Fabric Expansion Module From Server SSD BD. We have a large collection of latest Cisco Server Expansion Module to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The Cisco UCS-IOM2204XP 4-Port 10GB Fabric Expansion Module comes with 1 Year warranty.
