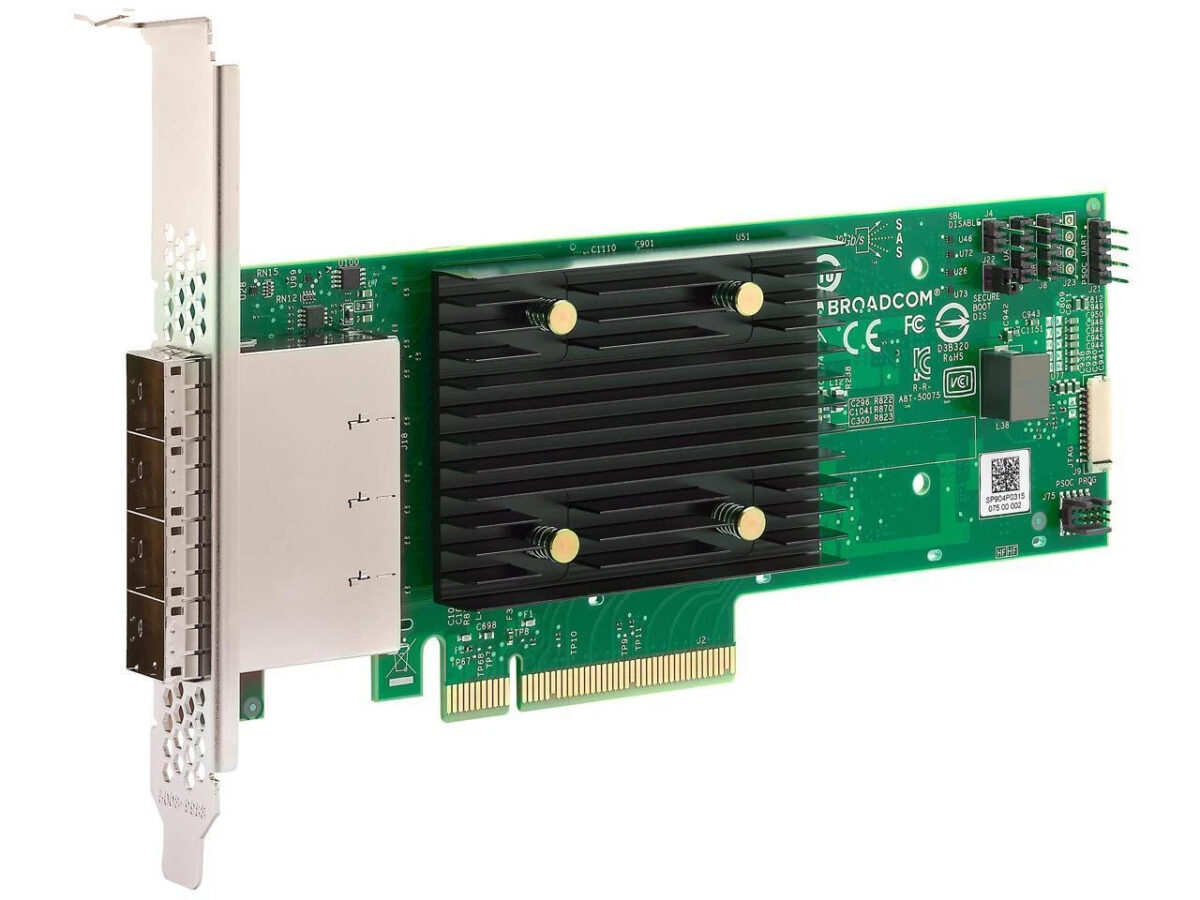

Broadcom 9500-16E HBA Expansion Card
The Broadcom 9500-16E HBA Expansion Card is a high-performance storage solution designed for enterprise environments. Supporting up to 1024 SAS/SATA devices or 32 NVMe drives, it delivers exceptional sequential read speeds of up to 13,700 MB/s and up to 3 million IOPS for random reads. Ideal for databases, cloud computing, and media applications, it ensures reliable, secure, and efficient storage management for your servers.
Specification Table
| Feature | Specification |
|---|---|
| Model | Broadcom 9500-16e Tri-Mode HBA |
| Host Interface | PCIe Gen 4.0 x8 |
| Storage Interfaces | 12Gb/s SAS, 6Gb/s SATA, PCIe Gen 4.0 (NVMe) |
| External Ports | 16 x4 SFF-8644 connectors |
| Maximum Device Support | Up to 1024 SAS/SATA devices or 32 NVMe devices |
| Sequential Read Performance | Up to 13,700 MB/s (256K sequential read) |
| Random Read IOPS | Up to 3 million IOPS (4K random read) |
| Form Factor | Half-height, low-profile PCIe card |
| Universal Bay Management | UBM ready (SFF-TA-1005) |
| Security Features | Hardware Secure Boot |
| Management Tools | LSI Storage Authority (LSA), StorCLI, UEFI Human Interface Infrastructure (HII) |
| Operating System Support | Windows, VMware vSphere/ESXi, RHEL, SuSE Linux, Ubuntu, CentOS, Debian, FreeBSD, Oracle Linux, Citrix XenServer |
| Target Applications | Enterprise databases, analytics, medical imaging, media applications, cloud computing |
📝 Broadcom 9500-16e HBA Description
The Broadcom 9500-16e Tri-Mode Host Bus Adapter is a high-performance storage solution designed to meet the demanding needs of modern data centers and enterprise environments. Featuring a PCIe Gen 4.0 x8 host interface, it delivers exceptional bandwidth and low latency, ensuring seamless data transfer between the host system and connected storage devices.
Equipped with 16 external x4 SFF-8644 ports, the 9500-16e supports a wide range of storage devices, including up to 1024 SAS/SATA drives or 32 NVMe devices, providing unparalleled scalability. Its tri-mode architecture allows for simultaneous operation with SAS, SATA, and NVMe devices, offering flexibility and future-proofing for evolving storage needs.
Performance-wise, the adapter boasts impressive sequential read speeds of up to 13,700 MB/s and random read IOPS reaching 3 million, making it suitable for high-throughput applications such as enterprise databases, analytics, and media processing. Additionally, it supports Universal Bay Management (UBM) and is hardware secure boot ready, ensuring compatibility with various server configurations and enhanced security.
With broad operating system support, including Windows, VMware, and various Linux distributions, the Broadcom 9500-16e HBA is a versatile and reliable choice for organizations seeking to optimize their storage infrastructure.
Key Features
- High Performance: Supports 16 lanes of PCIe Gen 4 for ultra-fast data transfer.
- Broad Connectivity: 16-port SAS/SATA support for enterprise storage environments.
- RAID Support: Compatible with various RAID configurations for redundancy and performance.
- Advanced Data Protection: Features end-to-end data integrity with error detection.
- Low Latency: Optimized for data-intensive applications such as databases and virtualization.
- Compatibility: Works with major server platforms including Dell, HPE, and Supermicro.
Where it Can Be Used?
- Enterprise Servers: Ideal for data centers requiring high throughput and low latency.
- Storage Arrays: Connects multiple hard drives or SSDs for SAN or NAS solutions.
- Virtualization: Supports high IOPS workloads in virtualized server environments.
- Database Applications: Enhances read/write speeds for large-scale database operations.
- Backup and Archiving: Provides reliable connectivity for high-capacity storage solutions.
Installation Step
- Power off the server and unplug all power cables.
- Open the server chassis and locate an available PCIe slot.
- Carefully insert the Broadcom 9500-16E card into the PCIe slot until it clicks.
- Secure the card with the mounting bracket screw.
- Connect storage drives via SAS/SATA cables to the card.
- Close the chassis and reconnect power cables.
- Boot the server and install the required drivers/software.
- Configure the card in the system BIOS or RAID management utility if needed.
Buy Broadcom 9500-16E HBA Expansion Card at the Best Price from Server SSD BD.
In Bangladesh, you can get Broadcom 9500-16E HBA Expansion Card From Server SSD BD. We have a large collection of latest Broadcom HBA Card to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The Broadcom 9500-16E HBA Expansion Card comes with 1 Year warranty.
Get in Touch with Server SSD Bangladesh
- 📞 Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Broadcom 9500-16E HBA Expansion Card in Bangladesh?
The estimated price of Broadcom 9500-16E HBA Expansion Card in Bangladesh is 58,500৳. You can buy the Broadcom 9500-16E HBA Expansion Card at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
