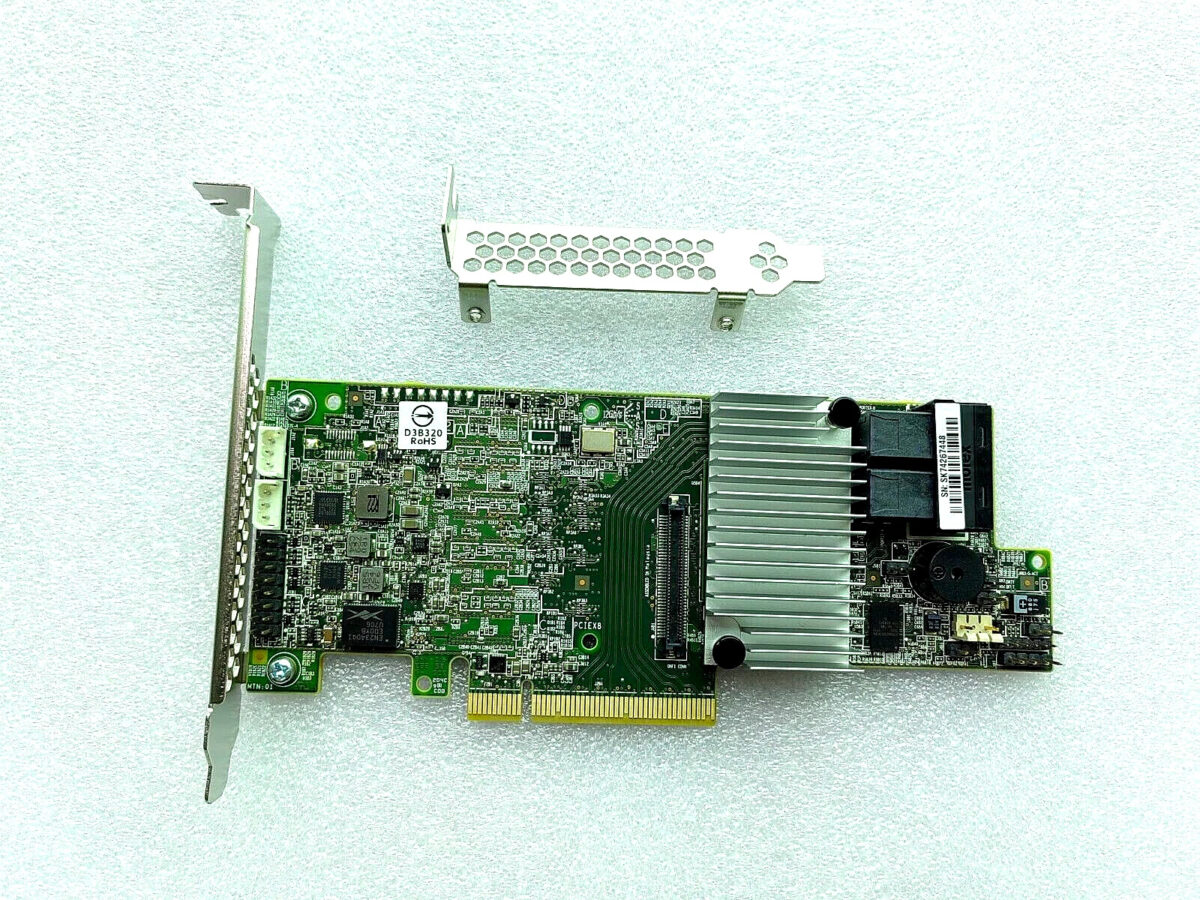

Broadcom 9361-8i 2G Lsi Card
The Broadcom 9361-8i 2G LSI Card is a high-performance MegaRAID SAS controller designed for demanding server environments. Featuring 2GB DDR3 cache, support for up to 128 SATA/SAS drives, and multiple RAID levels, it ensures fast, reliable, and secure data storage. Available at Server SSD Bangladesh, it’s perfect for enhancing your server’s storage efficiency and protection.
Specification Table
| Feature | Specification |
|---|---|
| Model | MegaRAID SAS 9361-8i 2GB |
| Interface | PCIe 3.0 x8 |
| Controller | LSI SAS 3108 (Dual-core PowerPC 476, 1.2 GHz) |
| Cache Memory | 2GB DDR3 SDRAM (1866 MHz) |
| Ports | 8 internal (2 × SFF-8643 mini-SAS HD) |
| Data Transfer Rate | Up to 12 Gb/s |
| RAID Levels Supported | 0, 1, 5, 6, 10, 50, 60 |
| Drive Support | Up to 128 SATA/SAS drives |
| Form Factor | Low-profile PCIe 3.0 card |
| Data Protection Features | CacheVault flash cache protection (optional), advanced drive diagnostics |
| Software Support | CacheCade Pro 2.0 (optional), MegaRAID Fast Path (included), SafeStore (optional) |
| Operating Systems Supported | Windows, Linux, VMware, FreeBSD, Solaris (x86) |
| Dimensions | 1.75″ x 10.50″ x 6.00″ (44.5 mm x 266.7 mm x 152.4 mm) |
📝 Description
The Broadcom MegaRAID SAS 9361-8i 2GB is a high-performance RAID controller designed for enterprise-level storage solutions. Equipped with the LSI SAS 3108 dual-core processor running at 1.2 GHz, it delivers robust processing power to handle demanding data operations. The 2GB DDR3 cache memory enhances read/write performance, ensuring efficient data throughput.
With eight internal 12 Gb/s SATA/SAS ports, the 9361-8i supports up to 128 drives, making it suitable for large-scale storage configurations. It offers support for multiple RAID levels, including 0, 1, 5, 6, 10, 50, and 60, providing flexibility in data redundancy and performance optimization.
Data protection is a key feature, with support for CacheVault flash cache protection and advanced drive diagnostics. These features help safeguard data integrity and minimize the risk of data loss. Additionally, the controller supports software options like CacheCade Pro 2.0 and SafeStore, enhancing caching capabilities and data security.
The low-profile PCIe 3.0 x8 form factor ensures compatibility with a wide range of server chassis, making the MegaRAID SAS 9361-8i 2GB a versatile choice for modern data centers seeking reliable and scalable storage solutions.
Key Features
- Controller Type: SAS/SATA RAID controller
- Interface: PCIe 3.0 x8
- RAID Support: RAID 0, 1, 5, 6, 10, 50, 60
- Cache Memory: 2GB DDR3 cache with battery backup (BBU/Flash-Backed)
- Drive Support: Up to 240 SATA/SAS drives (depending on expansion)
- Data Transfer Rate: 12Gb/s per port
- Operating System Support: Windows, Linux, VMware, and FreeBSD
- Advanced Features: Hot-swappable drive support, online capacity expansion, RAID level migration
Where it Can Be Used
- Enterprise Servers: Ideal for data centers requiring high-speed RAID storage
- Database Applications: Suitable for large databases needing high IOPS
- Virtualization Platforms: Supports VMware, Hyper-V, and other virtual environments
- Backup and Storage Arrays: Excellent for SAN and NAS setups
- High-Performance Computing: For environments with large storage I/O requirements
Installation Steps
- Power off the server and unplug all cables.
- Insert the Broadcom 9361-8i card into a compatible PCIe x8 slot.
- Secure the card with screws to prevent movement.
- Connect SAS/SATA cables from the card to storage drives.
- Power on the server and enter the BIOS/UEFI settings.
- Configure RAID settings using the LSI MegaRAID BIOS utility.
- Install necessary drivers and management software on your OS.
- Verify drives are recognized and RAID array is functional.
Buy Broadcom 9361-8i 2G Lsi Card at the Best Price from Server SSD BD.
In Bangladesh, you can get Broadcom 9361-8i 2G Lsi Card From Server SSD BD. We have a large collection of latest Broadcom Accessories to purchase for your Server. Order Online Or Visit our Office to get yours at lowest price. The Broadcom 9361-8i 2GB Lsi Card comes with 1 Year warranty.
